Product Dimensions 41.5"h x 36.5"w x 27.5"d

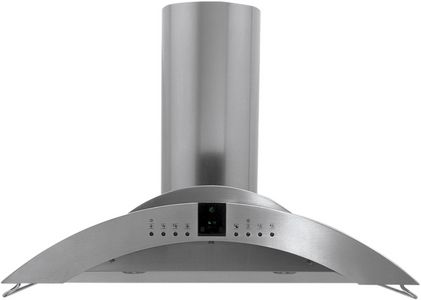

Monogram® 36" Island Ventilation with 4 halogen lamps and 350 CFMRead More
Additional Savings Available
View Options
graceful curves and lines creates a distinct appearance that enhances any kitchen
Provides the power necessary to capture smoke and fumes produced by high-performance cooking equipment
Offer six levels of intensity, from ambient to low/night illumination, to meet different needs
Trap airborne grease particles and are dishwasher-safe. An indicator light signals when the filters need cleaning.
Can be set for the fan to automatically shut-off after 5, 10 or 20 minutes of operation
Can be installed for internal ventilation
General Specs | |
| Width (in.) | 36.5 |
| Height (in.) | 41.5 |
| Duct Size (in.) | 6 |
| Depth (in.) | 27.5 |
| Color | Stainless Steel |
| Positioning | Stationary |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Island |
| ADA Compliant | No |
| Appliance Fit Width (in.) | 37 |
| Product Weight (lbs.) | 76 |
| Smart Compatible | No |
| Maximum CFM | 350 |
| Bulb Type | Halogen |
| Filter Indicator Light | Yes |
| Fan Speed Options | 4 |
| Height Above Cooktop | 24 - 30 |
| Shipping Width (in.) | 31.5 |
| Shipping Height (in.) | 26.5 |
| Voltage | 120 |
| Amp | 3.74 |
| Ventilation Type | Ducted |
Construction | |
| Chimney: | Fixed |
Dimensions | |
| Shipping Weight: | 106 |
| Max Height Above Cooktop: | 30 |
| Min Height Above Cooktop: | 24 |
Display | |
| Controls: | Digital |
General Features | |
| Filter Type: | Stainless Steel Filters |
| Cleanability: | Dishwasher Safe |
Other | |
| Number of Lights: | 4 |
| Settings: | 6 |
Styling | |
| Design: | Chimney |
